Move mailboxes if Skype For Business enabled

Question

1 Answer

Hello Kaj,

Thank you for specifying. To create the Scheduled Task:

Launch Adaxes Administration Console.

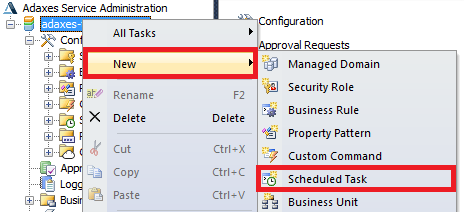

Right-click your Adaxes service node, navigate to New and click Scheduled Task.
On step 3 of the Create Scheduled Task wizard, select User Object type and click Next.

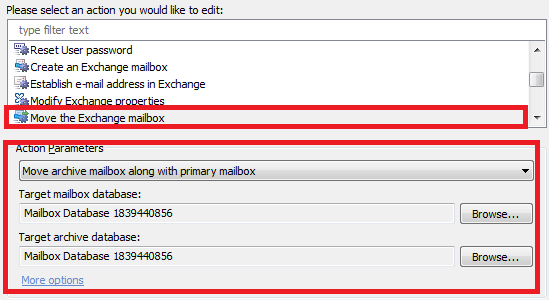

Click Add Action and select Move the Exchange mailbox.
Specify action parameters and click OK.

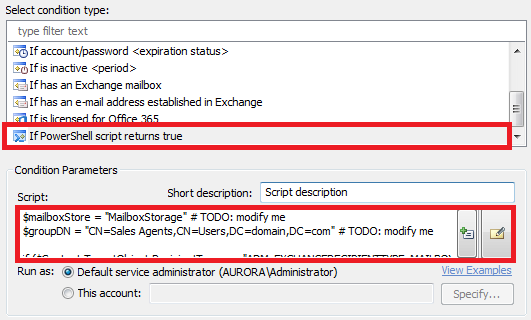

Double click Always and select If PowerShell script returns true.

Paste the following script into the Script field.

 $mailboxStore = "MailboxStorage" # TODO: modify me
 $groupDN = "CN=Sales Agents,CN=Users,DC=domain,DC=com" # TODO: modify me

 if ($Context.TargetObject.RecipientType -ne "ADM_EXCHANGERECIPIENTTYPE_MAILBOXENABLED")
 {
     return
 }

 # Get GUIDs of the groups the user is a member of
 $Context.ConditionIsMet = $False
 $targetGroupGuids = New-Object "System.Collections.Generic.HashSet[Guid]"
 try
 {
     $Context.TargetObject.GetEx("adm-MemberOfGuid") | %%{[void]$targetGroupGuids.Add([Guid]$_)}
 }
 catch
 {
     return # The user is not a member of any groups. Return False
 }
 $group = $Context.BindToObjectByDN($groupDN)
 $groupGuid = [Guid]$group.Get("ObjectGuid")
 $mailboxParams = $Context.TargetObject.GetMailParameters()

 $Context.ConditionIsMet = $Context.TargetObject.IsLyncEnabled -and (($mailboxParams.StorageDatabase -eq $mailboxStore) -or $targetGroupGuids.Contains($groupGuid))

Enter a short description and click OK.
Click Next and finish creating the Scheduled Task.

commented Sep 7, 2017 by Support2 (294k points)

Hello Kaj,

$mailboxStore = source Exchange store to move from?

Yes.

$groupDN = Group members it should operate on?

No, you mentioned that a mailbox should be moved if a user is enabled for Skype for Business and the mailbox is stored in a specific MailboxStore or if a user is enabled for Skype for Business and is member of a specific group. The $groupDN variable specifies the distinguished name of this group.

A side note - Is there a way to repopolute (empty & refill) the Group based on Skype for Business membership? We have such script to populate already outside of AdAxess but that one only adds users, never removes manually added or users that been decommisioned from Sfb.

Could you provide us with as much detail on the desired scenario as possible?

commented Sep 8, 2017 by Support2 (294k points)

I basically run this script now, the first line is added today .... Would like to get it into ADAxess instead so all automatic stuff is in one place.

Remove-ADGroupMember "XXXX" -Members (Get-ADGroupMember "XXXX")  -Confirm:$false
Foreach ($User in get-csuser -filter {Enabled -ne $Null})
{Add-ADGroupMember -Identity "SFB" -Members $User.SamAccountName}

Can AdAxess access the get-csuser calls from within its engine or does the above need to be rewritten somehow?

commented Sep 8, 2017 by KajLehtinen (650 points)

No, you mentioned that a mailbox should be moved if a user is enabled for Skype for Business and the mailbox is stored in a specific MailboxStore or if a user is enabled for Skype for Business and is member of a specific group. The $groupDN variable specifies the distinguished name of this group.

Perhaps a misunderstanding / I'm that misreading the statement. The mailboxes that needs to be moved are located on Exchange server Y and (members of the group XXXX or Skype enabled). My suggestion with group or SFB enabled was two different approaches to the same problem, clearly checking the SFB enablement directly is a cleaner way to go than to take the round trip through the group membership that can be wrong due to manual editing.

I'm guessing the last line of code can be changed to the below to only act on one store and lync enablement.

$Context.ConditionIsMet = $Context.TargetObject.IsLyncEnabled -and (($mailboxParams.StorageDatabase -eq $mailboxStore)

But I also now realize that we are talking about STORE, not Server - where Server would be more right since the user can be on any of four stores on one Exchange 2010 server.

Also, we would like to limit the number of moves for each pass of the scheduled task and run the scheduled task once every night. This so that we move users slowly to new exchange environment but that its still automated during the migration.

Remove-ADGroupMember "XXXX" -Members (Get-ADGroupMember "XXXX")  -Confirm:$false
Foreach ($User in get-csuser -filter {Enabled -ne $Null})
{Add-ADGroupMember -Identity "SFB" -Members $User.SamAccountName}

To comment on my other post in this thread - I guess that its a nicer approach to check if the user is isLyncEnabled and ifso insert the user to the XXXX group. Question is how to remove users that no longer is SFB enabled for some reason or another and how the above code can be adapted and inserted into your script to both move the Exchange store and update the SFB members group.

/Kaj

commented Sep 8, 2017 by KajLehtinen (650 points)

Hello Kaj,

The solution will include 2 Scheduled Tasks. The first task will move mailboxes of users enabled for Skype for Business (Lync), the second task will add/remove users to a group depending on whether they are enabled for Skype for Business (Lync).

i. Creating the Scheduled Task to move mailboxes.

Launch Adaxes Administration Console.
Right-click your Adaxes service node, navigate to New and click Scheduled Task.
On step 3 of the Create Scheduled Task wizard, select Domain-DNS Object type and click Next.
Click Add Action.
Select Run a program or Powershell script.

Paste the script below into the Script field.

 $sourceExcahngeServer = "SourceMailboxServer1" # TODO: modify me
 $targetExcahngeServers = @("TargetMailboxServer1", "TargetMailboxServer1") # TODO: modify me

 # Mailbox move settings
 $mailboxMoveLimit = 10 # TODO: modify me
 $moveWithArchive = $True # TODO: modify me
 $badItemLimit = 0 # TODO: modify me
 $largeItemLimit = 0 # TODO: modify me

 function SearchObjects($path, $filter, $properties, $searchInAllDomans, $sizeLimit)
 {
     $searcher = $Context.BindToObject($path)
     $searcher.SearchFilter = $filter
     $searcher.SearchScope = "ADS_SCOPE_SUBTREE"
     $searcher.PageSize = 500
     $searcher.ReferralChasing = "ADS_CHASE_REFERRALS_NEVER"
     $searcher.SetPropertiesToLoad($properties)
     if ($searchInAllDomans)
     {
         $searcher.VirtualRoot = $True
     }
     if ($sizeLimit -ne $NULL)
     {
         $searcher.SizeLimit = $sizeLimit
     }

     try
     {
         $searchResultIterator = $searcher.ExecuteSearch()
         $searchResults = $searchResultIterator.FetchAll()

         return ,$searchResults
     }
     finally
     {
         # Release resources
         if ($searchResultIterator){ $searchResultIterator.Dispose() }
     }
 }

 # Get all databases from source exchange server
 $sourceServerSearchResults = SearchObjects "Adaxes://RootDSE" "(&(objectClass=msExchExchangeServer)(name=$sourceExcahngeServer))" @("distinguishedName") $True $NULL
 if ($sourceServerSearchResults.Length -eq 0)
 {
     $Context.LogMessage("Exchange server '$sourceExcahngeServer' not found.", "Warning")
     return
 }
 $sourceServerDN = $sourceServerSearchResults[0].Properties["distinguishedName"].Value
 $domainName = $Context.GetObjectDomain($sourceServerDN)
 $sourceDBSearchResults = SearchObjects "Adaxes://$domainName/RootDSE" "(&(objectClass=msExchPrivateMDB)(msExchOwningServer=$sourceServerDN))" @() $False $NULL
 if ($sourceDBSearchResults.Length -eq 0)
 {
     $Context.LogMessage("No mailbox databases found for server '$sourceExcahngeServer'.", "Warning")
     return
 }

 # Search users enabled for Skype for Business (Lync)
 $filter = New-Object "System.Text.Stringbuilder"
 [void]$filter.Append("(&(sAMAccountType=805306368)(msRTCSIP-UserEnabled=TRUE)(msExchRecipientTypeDetails=1)(|")
 foreach ($searchResult in $sourceDBSearchResults)
 {
     [void]$filter.Append([Softerra.Adaxes.Ldap.FilterBuilder]::Create("homeMDB", $searchResult.Properties["distinguishedName"].Value))
 }
 [void]$filter.Append("))")
 $usersSearchResults = SearchObjects "Adaxes://$domainName/RootDSE" $filter.ToString() @() $False $mailboxMoveLimit
 if ($usersSearchResults.Length -eq 0)
 {
     $Context.LogMessage("No users enabled for Skype for Business (Lync) found.", "Information")
     return
 }

 # Search target exchange servers
 $targetServerSearchResults = @()
 foreach ($server in $targetExcahngeServers)
 {
     $searchResults = SearchObjects "Adaxes://RootDSE" "(&(objectClass=msExchExchangeServer)(name=$server))" @("distinguishedName") $True $NULL
     $targetServerSearchResults += $searchResults
 }
 if ($targetServerSearchResults.Length -eq 0)
 {
     $Context.LogMessage("Target exchange servers not found.", "Warning")
     return
 }

 # Build filter for searching target mailbox databases
 $targetDBSearchFilter = New-Object "System.Text.StringBuilder"
 [void]$targetDBSearchFilter.Append("(&(objectClass=msExchPrivateMDB)(|")
 foreach ($searchResult in $targetServerSearchResults)
 {
     $dn = $searchResult.Properties["distinguishedName"].Value
     [void]$targetDBSearchFilter.Append("(msExchOwningServer=$dn)")
 }
 [void]$targetDBSearchFilter.Append("))")

 # Search target mailbox databases
 $targetDBSearchResults = SearchObjects "Adaxes://RootDSE" $targetDBSearchFilter.ToString() @("homeMDBBL", "distinguishedName") $True $NULL
 if ($targetDBSearchResults.Length -eq 0)
 {
     $Context.LogMessage("Target mailbox databases not found.", "Warning")
     return
 }
 $targetDBInfos = @{}
 foreach ($searchResult in $targetDBSearchResults)
 {
     $dn = $searchResult.Properties["distinguishedName"].Value
     $homeMDBBL = $searchResult.Properties["homeMDBBL"].Values
     $targetDBInfos.Add($dn, $homeMDBBL.Count)
 }

 # Move user mailboxes
 foreach ($searchResult in $usersSearchResults)
 {
     # Get mailbox DB with the least number of mailboxes
     $dbInfo = $targetDBInfos.GetEnumerator() | Sort Value -Descending | Select -Last 1
     $targetDBInfos[$dbInfo.Key] += 1

     # Bind to user
     $user = $Context.BindToObject($searchResult.AdsPath)

     # Create Move request
     $archiveDatabaseDN = $NULL
     $targetDatabaseDN = $dbInfo.Key.ToString()
     if ($moveWithArchive)
     {
         $archiveDatabaseDN = $dbInfo.Key.ToString()
     }
     $user.CreateMoveMailboxRequest("Adaxes://$targetDatabaseDN", $archiveDatabaseDN, $badItemLimit, $largeItemLimit)
 }

In the script:

$sourceExcahngeServer – Specifies the name of the Exchange server from which mailboxes are moved.
$targetExcahngeServers - Specifies names of the Exchange servers to which mailboxes are moved.
To obtain the name of an Exchange server, sign in to the server and execute the following command:
(Get-ExchangeServer).Name
$mailboxMoveLimit - Specifies the number of mailboxes to move.
$moveWithArchive - Specifies whether mailbox archives must be moved.
$badItemLimit - Specifies the number of bad items to skip if the request encounters corruption in the mailbox. Use 0 to not skip bad items. The valid input range for this parameter is from 0 through 2147483647.
$largeItemLimit - Specifies the number of large items to skip if the request encounters such items in the mailbox. Use 0 to not skip any large items.

Enter a short description and click OK.
Finish creating the Scheduled Task

ii. Creating the Scheduled Task to add/remove users from a Group.

Launch Adaxes Administration Console.
Right-click your Adaxes service node, navigate to New and click Scheduled Task.
On step 3 of the Create Scheduled Task wizard, select User Object type and click Next.
Click Add Action.

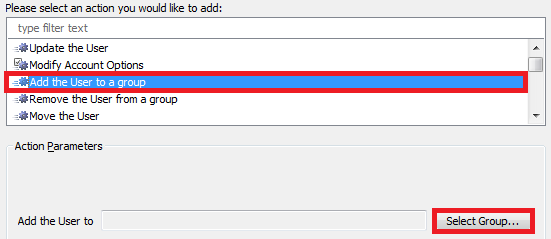

Select Add the User to a group and click Select Group.
Select the group to which users enabled for Skype for Business (Lync) must be added and click OK twice.

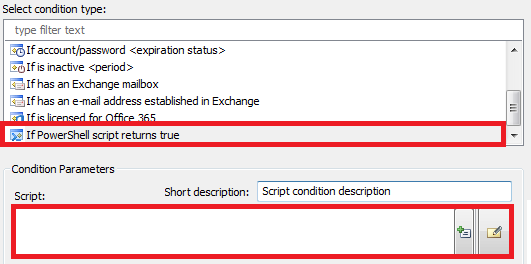

Double-click Always and select If Powershell script returns true.

Paste the script below into the Script field.

 $Context.ConditionIsMet = $Context.TargetObject.IsLyncEnabled

Enter a short description and click OK.

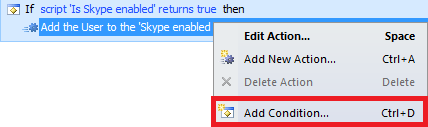

Right-click the action you have created and click Add Condition.

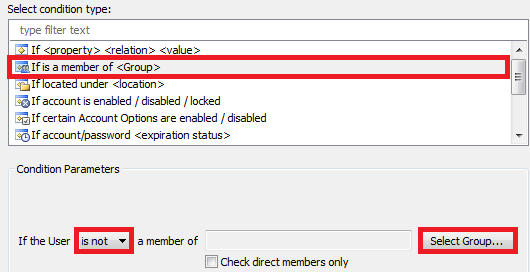

Select If is a member of <Group>.
Select is not and click Select Group.
Select the same group you have selected on step 6 and click OK twice.

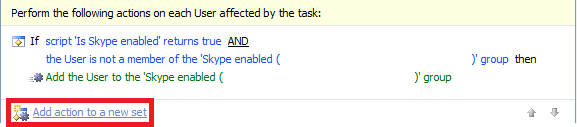

Click Add action to a new set.

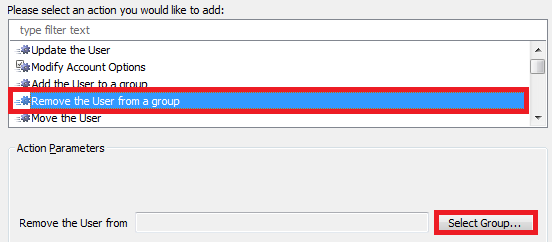

Select Remove the User from a group and click Select Group.
Select the same group you have selected on step 6 and click OK twice.
Double-click Always and select If Powershell script returns true.

Paste the script below into the Script field.

 $Context.ConditionIsMet = (-not($Context.TargetObject.IsLyncEnabled))

Enter a short description and click OK.
Right-click the action you have created and click Add Condition.
Select If is a member of <Group> and click Select Group.
Select the same group you have selected on step 6 and click OK twice.
Finish creating the Scheduled Task.

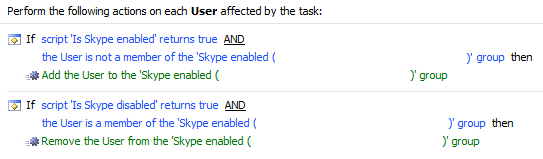

You should have something like the following:

commented Sep 11, 2017 by Support2 (294k points)
