Hot to Get ActiveSync devices details for all users ?

Question

Hello,

We need a report or a custom command that export all Active Sync devices details. Is there a way to do it ?

Thanks :-)

Michel

Comments

Hello Michel,

What exactly do you mean by Active Sync devices details? Could you, please, provide a live example of the desired report? You can post it here or email at support@adaxes.com.

---

Hello,

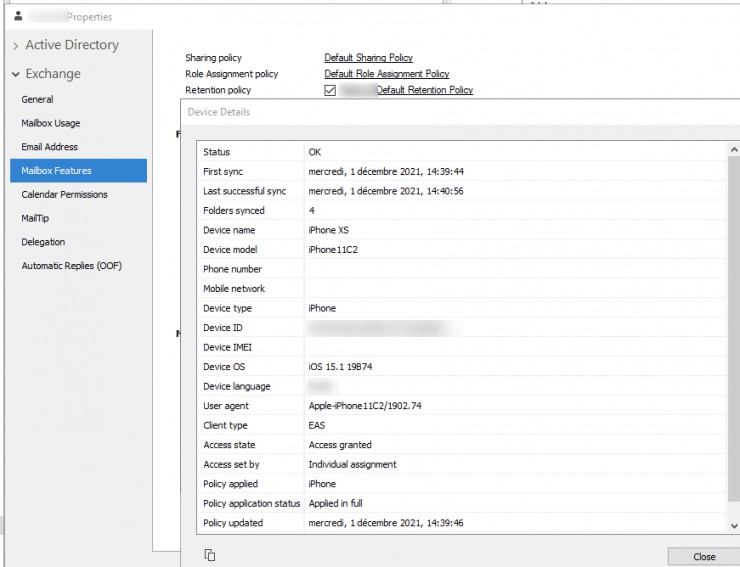

For each devices we need the user name and all informations showed in Device Details.

---

Hello Michel,

Thank you for clarifying. Unfortunately, there is no possibility to make such a report due to the number of columns. As a solution, you can have a custom command with a PowerShell script. The script can create a CSV file with all the data and deliver it via email. Does the approach meet your needs?

---

Hello, thank you for your answer.

Yes, it will meet our need.

Answer 1

Hello Michel,

Thank you for the confirmation. Below is the script that will send the report. In the script:

• $csvFilePath - Specifies the network path to the CSV file that will be created by the script.
• $removeCsvFile - Specifies whether to remove the CSV file after sending the email.
• $recipient - Specifies the email address of the notification recipient.
• $from - Specifies the email address the email notification will be sent from.
• $subject - Specifies the email notification subject. You can use value references in the subject (e.g. %fullname%) to add values of the target user properties.
• $message - Specifies the email notification text. You can use value references in the text (e.g. %fullname%) to add values of the target user properties.
• $smtpServer - Specifies the SMTP server that will be used to send the email notification.

# CSV file settings
$csvFilePath = "C:\Scripts\Report.csv" # TODO: modify me
$removeCsvFile = $True # TODO: modify me

# E-mail settings
$recipient = "recipient@domain.com" # TODO: Modify me
$from = "noreply@domain.com" # TODO: Modify me
$subject = "Mobile devices" # TODO: modify me
$message = "Mobile devices" # TODO: modify me
$smtpServer = "mail.domain.com" # TODO: Modify me

function GetDeviceAccessState ($mobileDevice)
{
    switch ($mobileDevice.DeviceAccessState)
    {
        "ADM_MOBILE_DEVICE_ACCESS_STATE_UNKNOWN"
        {
            $deviceAccessState = "Unknown"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_ALLOWED"
        {
            $deviceAccessState = "Access granted"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_BLOCKED"
        {
            $deviceAccessState = "Access denied"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_QUARANTINED"
        {
            $deviceAccessState = "Quarantined"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_DEVICEDISCOVERY"
        {
            $deviceAccessState = "Gathering information"
        }
    }

    return $deviceAccessState
}

function GetStatus ($mobileDevice)
{
    if ($mobileDevice.isWaitingForDeletion)
    {
        return "Deletion pending"
    }

    $status = $NULL
    switch ($mobileDevice.WipeStatusLastCommitted)
    {
        "ADM_MOBILE_DEVICE_WIPE_STATUS_WIPEPENDING"
        {
            $status = "Wipe pending"
        }
        "ADM_MOBILE_DEVICE_WIPE_STATUS_WIPESUCCEEDED"
        {
            $status = "Wipe succeeded"
        }
        "ADM_MOBILE_DEVICE_WIPE_STATUS_ACCOUNTWIPEPENDING"
        {
            $status = "Account-only wipe pending"
        }
        "ADM_MOBILE_DEVICE_WIPE_STATUS_ACCOUNTWIPESUCCEEDED"
        {
            $status = "Account-only wipe succeeded"
        }
    }

    if ($NULL -ne $status)
    {
        return $status
    }

    if ($mobileDevice.DeviceAccessStateLastCommitted -eq "ADM_MOBILE_DEVICE_ACCESS_STATE_ALLOWED")
    {
        return "OK"
    }
    else
    {
        return GetDeviceAccessState $mobileDevice
    }
}

# Get mailbox parameters
$mailboxParams = $Context.TargetObject.GetMailParameters("ADM_GET_EXCHANGE_PARAMS_FLAGS_NONE")

# Get active sync feature
$activeSync = $mailboxParams.MailboxFeatures.GetItemByType("ADM_EXCHANGE_MAILBOXFEATURETYPE_ACTIVESYNC")

$records = New-Object System.Collections.ArrayList
foreach ($mobileDevice in $activeSync.MobileDevices)
{
    switch ($mobileDevice.DeviceAccessStateReason)
    {
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_UNKNOWN"
        {
            $DeviceAccessStateReason = "Unknown"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_GLOBAL"
        {
            $DeviceAccessStateReason = "Global permissions"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_INDIVIDUAL"
        {
            $DeviceAccessStateReason = "Individual assignment"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_DEVICERULE"
        {
            $DeviceAccessStateReason = "Device grouping permissions"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_UPGRADE"
        {
            $DeviceAccessStateReason = "Upgrade grace period"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_POLICY"
        {
            $DeviceAccessStateReason = "Security policy application"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_USERAGENTSCHANGES"
        {
            $DeviceAccessStateReason = "Too many user agent changes"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_RECENTCOMMANDS"
        {
            $DeviceAccessStateReason = "Too many identical commands"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_WATSONS"
        {
            $DeviceAccessStateReason = "Too many Watsons"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_OUTOFBUDGETS"
        {
            $DeviceAccessStateReason = "Too many out of budget exceptions"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_SYNCCOMMANDS"
        {
            $DeviceAccessStateReason = "Too many identical sync commands"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_ENABLENOTIFICATIONEMAIL"
        {
            $DeviceAccessStateReason = "Enable notification email"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_COMMANDFREQUENCY"
        {
            $DeviceAccessStateReason = "Too many commands"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_AADBLOCKDUETOACCESSPOLICY"
        {
            $DeviceAccessStateReason = "AAD premium account compromised issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_AADBLOCKDUETOCOMPROMISEDPASSWORD"
        {
            $DeviceAccessStateReason = "AAD premium account compromised issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_AADINTERACTIONREQUIREDDUETOCOMPROMISEDPASSWORD"
        {
            $DeviceAccessStateReason = "AAD premium password compromised issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_AADREQUIREMFA"
        {
            $DeviceAccessStateReason = "AAD premium policy MFA issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_DEVICENOTKNOWNWITHMANAGEDAPP"
        {
            $DeviceAccessStateReason = "External mobile application management issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_EXTERNALCOMPLIANCE"
        {
            $DeviceAccessStateReason = "External mobile device management compliance issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_EXTERNALENROLLMENT"
        {
            $DeviceAccessStateReason = "External mobile device management enrollment issue"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_EXTERNALMDM"
        {
            $DeviceAccessStateReason = "External mobile device management"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_OUTLOOKDESKTOPBLOCKDUETOCONSUMERMIGRATION"
        {
            $DeviceAccessStateReason = "Access denied for Outlook desktop consumer user"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_OUTLOOKMOBILEUPSELLINTERRUPT"
        {
            $DeviceAccessStateReason = "Interrupted for Outlook mobile upsell"
        }
        "ADM_MOBILE_DEVICE_ACCESS_STATE_REASON_UNFAMILIARLOCATION"
        {
            $DeviceAccessStateReason = "Unfamiliar location state issue"
        }
    }
    switch ($mobileDevice.DevicePolicyApplicationStatus)
    {
        "ADM_MOBILE_DEVICE_POLICY_APPSTATUS_UNKNWON"
        {
            $devicePolicyApplicationStatus = "Unknown"
        }
        "ADM_MOBILE_DEVICE_POLICY_APPSTATUS_NOTAPPLIED"
        {
            $devicePolicyApplicationStatus = "Not applied"
        }
        "ADM_MOBILE_DEVICE_POLICY_APPSTATUS_APPLIEDINFULL"
        {
            $devicePolicyApplicationStatus = "Applied in full"
        }
        "ADM_MOBILE_DEVICE_POLICY_APPSTATUS_PARTIALLYAPPLIED"
        {
            $devicePolicyApplicationStatus = "Partially applied"
        }
        "ADM_MOBILE_DEVICE_POLICY_APPSTATUS_EXTERNALLYMANAGED"
        {
            $devicePolicyApplicationStatus = "Externally managed"
        }
    }

    $status = GetStatus $mobileDevice
    $deviceAccessState = GetDeviceAccessState $mobileDevice
    $recordProperties = [ordered]@{
        "Status" = $status
        "First Sync" = $mobileDevice.FirstSyncTime
        "Last successful sync" = $mobileDevice.LastSuccessSync
        "Folders synced" = $mobileDevice.NumberOfFoldersSynced
        "Device name" = $mobileDevice.DeviceFriendlyName
        "Device model" = $mobileDevice.DeviceModel
        "Phone number" = $mobileDevice.DevicePhoneNumber
        "Mobile network" = $mobileDevice.DeviceMobileOperator
        "Device type" = $mobileDevice.DeviceType
        "Device ID" = $mobileDevice.DeviceId
        "Device IMEI" = $mobileDevice.DeviceImei
        "Device OS" = $mobileDevice.DeviceOS
        "Device language" = $mobileDevice.DeviceOSLanguage
        "User agent" = $mobileDevice.DeviceUserAgent
        "Client type" = $mobileDevice.ClientType
        "Access state" = $deviceAccessState
        "Access set by" = $DeviceAccessStateReason
        "Policy applied" = $mobileDevice.DevicePolicyApplied
        "Policy application status" = $devicePolicyApplicationStatus
        "Policy updated" = $mobileDevice.LastPolicyUpdateTime
        "ActiveSync version" = $mobileDevice.ClientVersion
    }

    $record = New-Object PSObject -Property $recordProperties
    [void]$records.Add($record)
}
$records.ToArray() | Export-Csv -Path $csvFilePath -NoTypeInformation

# Send mail
Send-MailMessage -to $recipient -From $from -Subject $subject -Body $message -SmtpServer $smtpServer -Attachments $csvFilePath

if ($removeCSVFile)
{
    # Remove temporary file
    Remove-Item $csvFilePath -Force
}

Comments

Thank you for you job :-)
