Trouble Generating and Exporting Adaxes Reports in Powershell

0 votes

I've been attempting to run the "Management History" report located in Reports -> All Reports -> Miscellaneous->Logging based on this script in the repository. I've been using this documentation in order to provide the parameters to the report, however, the script fails.

Here's my script:

`

[Reflection.Assembly]::LoadWithPartialName("Softerra.Adaxes.Adsi")

$serviceHost  = "***Adaxes Server FQDN***" # TODO: modify me
$reportDN = "CN=Management history,CN=Logging,CN=Miscellaneous,CN=Reports,CN=Reports Root,CN=Configuration Objects,CN=Adaxes Configuration,CN=Adaxes" # TODO: modify me
$documentType = "ADM_REPORTDOCUMENTTYPE_CSV"
$documentContent  = "ADM_REPORTDOCUMENTCONTENT_TABLE" # TODO: modify me
$filePath = "C:\Users\user\Desktop\auditevidence\managementhistory.csv" # TODO: modify me

# Prompt for credentials.
$credential = Get-Credential

# Bind to the report.
$admNS = New-Object "Softerra.Adaxes.Adsi.AdmNamespace"
$admService = $admNS.GetServiceDirectly($serviceHost)
$report = $admService.OpenObject("Adaxes://$reportDN", $credential.UserName, $credential.GetNetworkCredential().Password, 0)

# Arguments for report generation
$configuration = $report.GetConfiguration()
$arguments = $configuration.CreateReportArguments()
$arguments.Columns = $configuration.Generator.Columns.Columns

#Parameter Values
#param-ObjectTypes Checkbox List
$Users = "ADAXESPARAMID:{abe4fd4b-fbee-457a-b0e6-361e7c2a4325}"
$Computers = "ADAXESPARAMID:{3188db7a-6203-47d0-b231-73137eb5e54b}"
$Groups = "ADAXESPARAMID:{ba5d243f-4bd8-4a97-b93c-16073f55c702}"
$Contacts = "ADAXESPARAMID:{821e49b4-40e7-47b0-b564-8a9a809dca8e}"
$OUs = "ADAXESPARAMID:{e61c5598-7f48-4da9-a439-d052d0463884}"
$checkedItemIds = @($Groups)
$arguments.SetParameterValue("param-ObjectTypes", $checkedItemIds)

#param-Initiator Checkbox List
$UserInit = "ADAXESPARAMID:{69d21a6a-6a24-4f9c-9dd3-52060fd229af}"
$SchedTaskInit = "ADAXESPARAMID:{7d623323-069a-423a-963e-a2312b516626}"
$checkedInitItemIds = @($UserInit,$SchedTaskInit)
$arguments.SetParameterValue("param-Initiator", $checkedInitItemIds)

#param-Days Drop-down List
$24hours = "ADAXESVALUEID:{ee3d87a6-765a-4817-a516-bc8b5145b8fe}"
$7days = "ADAXESVALUEID:{857bcfbc-7ffd-49dd-ba20-070eb018f046}"
$15days = "ADAXESVALUEID:{3aa38677-9515-4641-b0b3-fbf9da09fd80}"
$30days = "ADAXESVALUEID:{d570e783-3a7a-4307-b590-8a30fc599332}"
$60days = "ADAXESVALUEID:{a8c6eff6-9cfd-4841-ac2b-6433b13134b5}"
$90days = "ADAXESVALUEID:{4dc0e46e-8230-41d0-b8b3-979b32657353}"
$180days = "ADAXESVALUEID:{78357603-26d5-4c7b-9a70-a45bfe58a1b4}"
$270days = "ADAXESVALUEID:{ca85e53c-3b86-4cee-b2af-279816921b11}"
$365Days = "ADAXESVALUEID:{936484f7-80c0-41b7-aed4-7c0bee7ee99d}"
$arguments.SetParameterValue("param-Days", $365Days)

#param-ShowServiceSender Check Box
$arguments.SetParameterValue("param-ShowServiceSender", 1)

#param-ErrorsOnly Check Box
$arguments.SetParameterValue("param-ErrorsOnly", 0)

# Generate the report.
$listItems = $report.Generate($arguments)

## Wait till all report items are fetched.
while (!$listItems.Completed)
{
    Sleep -Milliseconds 100
}

# Bind to the 'Reports' container.
$reportsRootContainerPath = $admService.Backend.GetConfigurationContainerPath("ReportsRoot")
$reportsRootContainer = $admService.OpenObject($reportsRootContainerPath, $credential.UserName, $credential.GetNetworkCredential().Password, 0)

# Create report document.
$reportDocument = $reportsRootContainer.CreateDocument($documentType, $report)
$reportDocument.Content = $documentContent
$reportDocument.EnableObjectLinks = $True

# Save to file.
$bytes = $reportDocument.CreateDocument($NULL, $arguments, $listItems, $NULL)
Set-Content -Path $filePath -Value $bytes -Encoding Byte

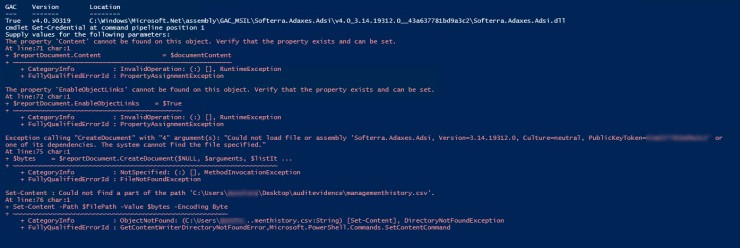

This is the output: 2023-08-15 11_37_27-di-itpaw-3 - Remote Desktop Connection \(Privileged Access Workstation \(Apps\)\).png

I'm fairly proficient with PowerShell, however, I'm new to using the ADSI Adaxes functionality and I'm not sure where to begin troubleshooting.

by (80 points)

1 Answer

0 votes
by (294k points)

Hello,

The script from the repository works just fine. Pay attention to the type of document. The repository script is generating a PDF file while you are trying to get a CSV file. To achieve the desired, try using the below script.

[Reflection.Assembly]::LoadWithPartialName("Softerra.Adaxes.Adsi")

$serviceHost  = "***Adaxes Server FQDN***" # TODO: modify me
$reportDN = "CN=Management history,CN=Logging,CN=Miscellaneous,CN=Reports,CN=Reports Root,CN=Configuration Objects,CN=Adaxes Configuration,CN=Adaxes" # TODO: modify me
$documentType = "ADM_REPORTDOCUMENTTYPE_CSV"
$filePath = "C:\Users\user\Desktop\auditevidence\managementhistory.csv" # TODO: modify me

# Prompt for credentials.
$credential = Get-Credential

# Bind to the report.
$admNS = New-Object "Softerra.Adaxes.Adsi.AdmNamespace"
$admService = $admNS.GetServiceDirectly($serviceHost)
$report = $admService.OpenObject("Adaxes://$reportDN", $credential.UserName, $credential.GetNetworkCredential().Password, 0)

# Arguments for report generation
$configuration = $report.GetConfiguration()
$arguments = $configuration.CreateReportArguments()
$arguments.Columns = $configuration.Generator.Columns.Columns

#Parameter Values
#param-ObjectTypes Checkbox List
$Users = "ADAXESPARAMID:{abe4fd4b-fbee-457a-b0e6-361e7c2a4325}"
$Computers = "ADAXESPARAMID:{3188db7a-6203-47d0-b231-73137eb5e54b}"
$Groups = "ADAXESPARAMID:{ba5d243f-4bd8-4a97-b93c-16073f55c702}"
$Contacts = "ADAXESPARAMID:{821e49b4-40e7-47b0-b564-8a9a809dca8e}"
$OUs = "ADAXESPARAMID:{e61c5598-7f48-4da9-a439-d052d0463884}"
$checkedItemIds = @($Groups)
$arguments.SetParameterValue("param-ObjectTypes", $checkedItemIds)

#param-Initiator Checkbox List
$UserInit = "ADAXESPARAMID:{69d21a6a-6a24-4f9c-9dd3-52060fd229af}"
$SchedTaskInit = "ADAXESPARAMID:{7d623323-069a-423a-963e-a2312b516626}"
$checkedInitItemIds = @($UserInit,$SchedTaskInit)
$arguments.SetParameterValue("param-Initiator", $checkedInitItemIds)

#param-Days Drop-down List
$24hours = "ADAXESVALUEID:{ee3d87a6-765a-4817-a516-bc8b5145b8fe}"
$7days = "ADAXESVALUEID:{857bcfbc-7ffd-49dd-ba20-070eb018f046}"
$15days = "ADAXESVALUEID:{3aa38677-9515-4641-b0b3-fbf9da09fd80}"
$30days = "ADAXESVALUEID:{d570e783-3a7a-4307-b590-8a30fc599332}"
$60days = "ADAXESVALUEID:{a8c6eff6-9cfd-4841-ac2b-6433b13134b5}"
$90days = "ADAXESVALUEID:{4dc0e46e-8230-41d0-b8b3-979b32657353}"
$180days = "ADAXESVALUEID:{78357603-26d5-4c7b-9a70-a45bfe58a1b4}"
$270days = "ADAXESVALUEID:{ca85e53c-3b86-4cee-b2af-279816921b11}"
$365Days = "ADAXESVALUEID:{936484f7-80c0-41b7-aed4-7c0bee7ee99d}"
$arguments.SetParameterValue("param-Days", $365Days)

#param-ShowServiceSender Check Box
$arguments.SetParameterValue("param-ShowServiceSender", 1)

#param-ErrorsOnly Check Box
$arguments.SetParameterValue("param-ErrorsOnly", 0)

# Generate the report.
$listItems = $report.Generate($arguments)

## Wait till all report items are fetched.
while (!$listItems.Completed)
{
    Sleep -Milliseconds 100
}

# Bind to the 'Reports' container.
$reportsRootContainerPath = $admService.Backend.GetConfigurationContainerPath("ReportsRoot")
$reportsRootContainer = $admService.OpenObject($reportsRootContainerPath, $credential.UserName, $credential.GetNetworkCredential().Password, 0)

# Create report document.
$reportDocument = $reportsRootContainer.CreateDocument($documentType, $report)

# Save to file.
$bytes = $reportDocument.CreateDocument($NULL, $arguments, $listItems, $NULL)
Set-Content -Path $filePath -Value $bytes -Encoding Byte
0

Thank you. That appeared to take care of the bulk of the errors, however, I'm still seeing this message:

Exception calling "CreateDocument" with "4" argument(s): "Could not load file or assembly 'Softerra.Adaxes.Adsi, Version=3.14.21404.0, Culture=neutral,
PublicKeyToken=****************' or one of its dependencies. The system cannot find the file specified."
At line:73 char:1
+ $bytes = $reportDocument.CreateDocument($NULL, $arguments, $listItems ...
+ ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    + CategoryInfo          : NotSpecified: (:) [], MethodInvocationException
    + FullyQualifiedErrorId : FileNotFoundException

I saw a similar issue in this thread, however, I've checked the permissions on the folder mentioned in that thread the service account already has permissions assigned.

by (80 points)
0

Hello,

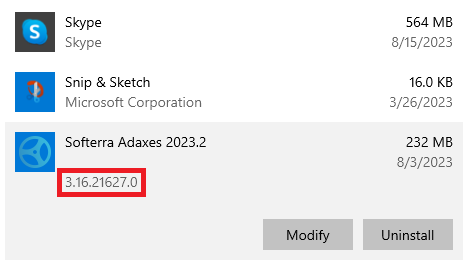

Are you executing the script on the same computer where Adaxes service runs? If not, make sure that the ADSI provider version matches that of the Adaxes service you connect to in the script. you can check the version in Windows Programs and Features:


by (294k points)
0

Thank you, I appreciate the amount of assistance you've provided.

They did not match; installing the matching version on the remote server seems to have fixed the terminating error.

The script now runs, however, the report it generates is just an empty file.

If I examine the $listitems variable this the error I see:

Completed           : True
Aborted             : False
GenerationException : Softerra.Adaxes.CommandPipeline.Actions.ExecuteActionWrapperException: Exception calling "GetParameterValue" with "1" argument(s): "The number of values doesn't match the number of items defined for parameter 'Object types'." --->
                      Softerra.Adaxes.Parameters.InvalidParameterValueException: The number of values doesn't match the number of items defined for parameter 'Object types'.
                         at Softerra.Adaxes.Parameters.AdmParameterCheckList.ValueToString(Object valueArg, ADM_VALUETARGET_ENUM valueTargetArg)
                         at Softerra.Adaxes.Reports.AdmReportArguments.GetParameterValue(String paramNameArg, ADM_VALUETARGET_ENUM valueTargetArg)
                         at Softerra.Adaxes.Reports.ReportScriptContextBase.GetParameterValue(String paramName)
                         at CallSite.Target(Closure , CallSite , Object , String )
                         --- End of inner exception stack trace ---
                         at Softerra.Adaxes.CommandPipeline.Actions.GenerateReportAction.ExecuteAction(IAdmTop targetObject)
                         at Softerra.Adaxes.CommandPipeline.Actions.ActionBase.Execute(IAdmTop targetObjectArg)
                         at Softerra.Adaxes.CommandPipeline.Actions.ActionBase.Execute(ICommand command)
GenerationLog       : {[Error 0x80004005] : Exception calling "GetParameterValue" with "1" argument(s): "The number of values doesn't match the number of items defined for parameter 'Object types'." Stack trace: at <ScriptBlock>, <No file>: line 2, [Error
                      0x80004005] : Exception calling "GetParameterValue" with "1" argument(s): "Input string was not in a correct format." Stack trace: at <ScriptBlock>, <No file>: line 4, [Error 0x80004005] : You cannot call a method on a null-valued
                      expression. Stack trace: at <ScriptBlock>, <No file>: line 8, [Error 0x80004005] : You cannot call a method on a null-valued expression. Stack trace: at <ScriptBlock>, <No file>: line 9...}
DataRetrievalLog    : {}

Here are the code for the param-ObjectTypes:

#param-ObjectTypes Checkbox List
$Users = "ADAXESPARAMID:{abe4fd4b-fbee-457a-b0e6-361e7c2a4325}"
$Computers = "ADAXESPARAMID:{3188db7a-6203-47d0-b231-73137eb5e54b}"
$Groups = "ADAXESPARAMID:{ba5d243f-4bd8-4a97-b93c-16073f55c702}"
$Contacts = "ADAXESPARAMID:{821e49b4-40e7-47b0-b564-8a9a809dca8e}"
$OUs = "ADAXESPARAMID:{e61c5598-7f48-4da9-a439-d052d0463884}"
$checkedItemIds = @($Groups)
$arguments.SetParameterValue("param-ObjectTypes", $checkedItemIds)
by (80 points)
0

Hello,

If I examine the $listitems variable this the error I see:

What exactly do you mean? How do you perform examination?

Here are the code for the param-ObjectTypes:

Make sure that all the identifiers for all parameters are correct. For information on how to obtain them, see https://adaxes.com/sdk/SampleScripts.ViewingParametersOfCustomCommand.

by (294k points)
0

After the script has been run I can check the variable to see the contents - for $listitems I see the error above.

by (80 points)
0

Hello,

The issue occurs due to the way parameter values are passed. In certain cases there should be explicit casting. Also, you need to specify a scope and CSV file settings in the script. We updated it accordingly. Find the complete script below.

[Reflection.Assembly]::LoadWithPartialName("Softerra.Adaxes.Adsi")

$serviceHost  = "***Adaxes Server FQDN***" # TODO: modify me
$reportDN = "CN=Management history,CN=Logging,CN=Miscellaneous,CN=Reports,CN=Reports Root,CN=Configuration Objects,CN=Adaxes Configuration,CN=Adaxes" # TODO: modify me
$documentType = "ADM_REPORTDOCUMENTTYPE_CSV"
$filePath = "C:\Users\user\Desktop\auditevidence\managementhistory.csv" # TODO: modify me

# Prompt for credentials.
#$credential = Get-Credential

# Bind to the report.
$admNS = New-Object "Softerra.Adaxes.Adsi.AdmNamespace"
$admService = $admNS.GetServiceDirectly($serviceHost)
$report = $admService.OpenObject("Adaxes://$reportDN", $credential.UserName, $credential.GetNetworkCredential().Password, 0)

# Arguments for report generation
$configuration = $report.GetConfiguration()
$arguments = $configuration.CreateReportArguments()
$arguments.Columns = $configuration.Generator.Columns.Columns

# Scope
$scope = $configuration.CreateScope("ADM_REPORTSCOPETYPE_LOCATION")
$baseObject = $scope.CreateBaseObject()
$baseObject.ObjectReference = $null # Everywhere
$scope.BaseObjects = @($baseObject)
$arguments.Scope = $scope

#Parameter Values
#param-ObjectTypes Checkbox List
$Users = "ADAXESPARAMID:{abe4fd4b-fbee-457a-b0e6-361e7c2a4325}"
$Computers = "ADAXESPARAMID:{3188db7a-6203-47d0-b231-73137eb5e54b}"
$Groups = "ADAXESPARAMID:{ba5d243f-4bd8-4a97-b93c-16073f55c702}"
$Contacts = "ADAXESPARAMID:{821e49b4-40e7-47b0-b564-8a9a809dca8e}"
$OUs = "ADAXESPARAMID:{e61c5598-7f48-4da9-a439-d052d0463884}"
$checkedItemIds = [System.String[]]@($Users)
$arguments.SetParameterValue("param-ObjectTypes", $checkedItemIds)

#param-Initiator Checkbox List
$UserInit = "ADAXESPARAMID:{69d21a6a-6a24-4f9c-9dd3-52060fd229af}"
$SchedTaskInit = "ADAXESPARAMID:{7d623323-069a-423a-963e-a2312b516626}"
$checkedInitItemIds = [System.String[]]@($UserInit,$SchedTaskInit)
$arguments.SetParameterValue("param-Initiator", $checkedInitItemIds)

#param-Days Drop-down List
$24hours = "ADAXESVALUEID:{ee3d87a6-765a-4817-a516-bc8b5145b8fe}"
$7days = "ADAXESVALUEID:{857bcfbc-7ffd-49dd-ba20-070eb018f046}"
$15days = "ADAXESVALUEID:{3aa38677-9515-4641-b0b3-fbf9da09fd80}"
$30days = "ADAXESVALUEID:{d570e783-3a7a-4307-b590-8a30fc599332}"
$60days = "ADAXESVALUEID:{a8c6eff6-9cfd-4841-ac2b-6433b13134b5}"
$90days = "ADAXESVALUEID:{4dc0e46e-8230-41d0-b8b3-979b32657353}"
$180days = "ADAXESVALUEID:{78357603-26d5-4c7b-9a70-a45bfe58a1b4}"
$270days = "ADAXESVALUEID:{ca85e53c-3b86-4cee-b2af-279816921b11}"
$365Days = "ADAXESVALUEID:{936484f7-80c0-41b7-aed4-7c0bee7ee99d}"
$arguments.SetParameterValue("param-Days", $24hours)

#param-ShowServiceSender Check Box
$arguments.SetParameterValue("param-ShowServiceSender", 1)

#param-ErrorsOnly Check Box
$arguments.SetParameterValue("param-ErrorsOnly", 0)

# Generate the report.
$listItems = $report.Generate($arguments)
$listItems
## Wait till all report items are fetched.
while (!$listItems.Completed)
{
    Sleep -Milliseconds 100
}

# Bind to the 'Reports' container.
$reportsRootContainerPath = $admService.Backend.GetConfigurationContainerPath("ReportsRoot")
$reportsRootContainer = $admService.OpenObject($reportsRootContainerPath, $credential.UserName, $credential.GetNetworkCredential().Password, 0)

# Create report document.
$reportDocument = $reportsRootContainer.CreateDocument($documentType, $report)
$reportDocument.LineBreak = "ADM_LINEBREAK_CRLF"
$reportDocument.ColumnSeparator = ","
$reportDocument.MultiValueSeparator = ";"

# Save to file.
$bytes = $reportDocument.CreateDocument($NULL, $arguments, $listItems, $NULL)
Set-Content -Path $filePath -Value $bytes -Encoding Byte
by (294k points)
0

This appears to have worked. Thank you for all of the support.

by (80 points)

Related questions

0 votes
1 answer
Class not Registered when Exporting a search in Adaxes

Good morning, I'm trying to process a search and export using the Adaxes console to create a list of users using specific criteria. I've been able to process this ... and the job is cancelled Please advise on how I might proceed in addressing this issue.

asked Jan 13, 2022 by jtop (700 points)
0 votes
1 answer
Generating report from return values of PowerShell function

I'm trying to generate a custom report based off the return values of a PowerShell script. I've tried looking over the tutorial docs and SDK, but I can't seem to piece it all ... Expression = { $_.Properties[1].Value } } } catch { Throw $_.Exception } } }

asked Sep 6, 2021 by joshua.lapchuk (60 points)
0 votes
1 answer
Is this still true in the latest version of Adaxes? Is the name column still mandatory in all reports?

As the title says is it still a requirement?

asked Feb 23, 2023 by techg (320 points)
0 votes
1 answer
Exporting users from a powershell action

We are in the process of migrating some objects from one domain to another. The process involves deleting attributes from the old object. Currently I'm saving certain attributes ... file. Is there a way to initiate that export from a custom powershell action?

asked Jul 23, 2014 by dtb147 (290 points)
+1 vote
1 answer
Is generating and distributing a Temporary Access Pass (TAP) from Azure AD instead of a password supported?

Aiming to go passwordless, this is a must-have

asked Aug 30, 2023 by JM (30 points)
3,589 questions
3,278 answers
8,303 comments
548,148 users
